400A Underground Service Upgrade (320A Continuous) in Los Altos, CA | Drummond Electric

400A Underground Service Upgrade (320A Continuous) in Los Altos, CA | Drummond Electric image

The situation
The homeowner was converting to an all-electric home with solar and battery storage. The existing 200A service couldn’t carry the new loads, and a load calculation showed the home needed a 400A service.

What a “320A continuous” service is
A residential 400A service uses a Class 320 meter panel, which PG&E rates for 320 amps of continuous load and 400 amps maximum. It’s the standard step up from 200A for larger homes and all-electric homes in the Bay Area.

What we did

  • Ran the load calculation and submitted the service upgrade application to PG&E

  • Pulled the permit with the City of Los Altos

  • Trenched and installed the underground conduit to PG&E specifications

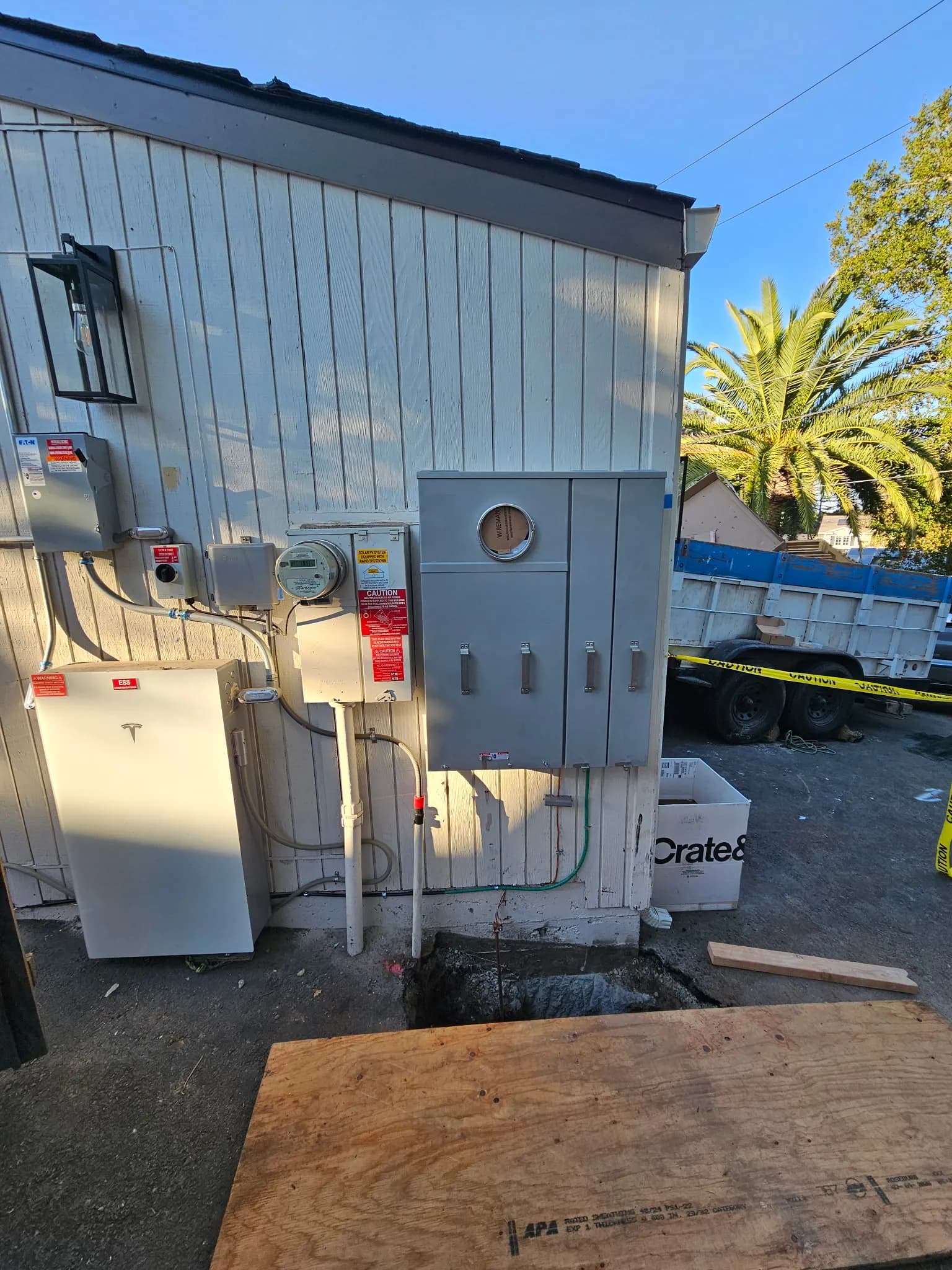

  • Installed a new 320A continuous / 400A meter-main

  • Fed two subpanels from it: a 200A and a 125A

  • Installed the grounding electrode system and bonding to current code

  • Passed City of Los Altos inspection

  • Managed the PG&E process through to the cutover and meter set

The PG&E timeline
From application to the day power was switched over to the new service took about 6 to 9 months. Most of that was PG&E’s own engineering and scheduling, not the construction work. That’s typical for 400A upgrades in the Bay Area right now. If you’re planning an all-electric conversion, solar or batteries, apply for the service upgrade as early as possible.

Result
The home now has a 400A underground service, with capacity for all-electric appliances, solar and battery storage. The load is split between a 200A and a 125A subpanel.

Planning an all-electric conversion or a 400A upgrade? It starts with a load calculation to confirm what you need, followed by the PG&E application. We handle the calculation, the PG&E process, the permit and the trenching. Call (408) 661-0219.
