320A Continuous Service Install for a Hot Gutter Setup

320A Continuous Service Install for a Hot Gutter Setup image
Gallery photos for 320A Continuous Service Install for a Hot Gutter Setup: Image #1Gallery photos for 320A Continuous Service Install for a Hot Gutter Setup: Image #2

The situation
The property in San Jose needed a separately metered ADU / separate meters for each unit / added capacity for 3. PG&E bills each unit from its own meter, so every unit needed its own meter and main breaker, all fed from one utility service.

What a hot gutter is
A hot gutter is a wireway installed on the line side of the meters, ahead of them. The utility’s service conductors land in the gutter, and taps run from there to each meter socket. Because the conductors inside are unmetered, PG&E seals the gutter, and it has to follow PG&E’s Greenbook requirements for layout, access and sealing. It’s a common way to serve several meters from one service drop or lateral without a factory-built multi-meter panel.

What we did

  • Prepared a load calculation for the whole property, plus each unit / the new ADU

  • Installed a 320A continuous-rated service (Class 320 meter base, the standard utility equipment for a 400A residential service)

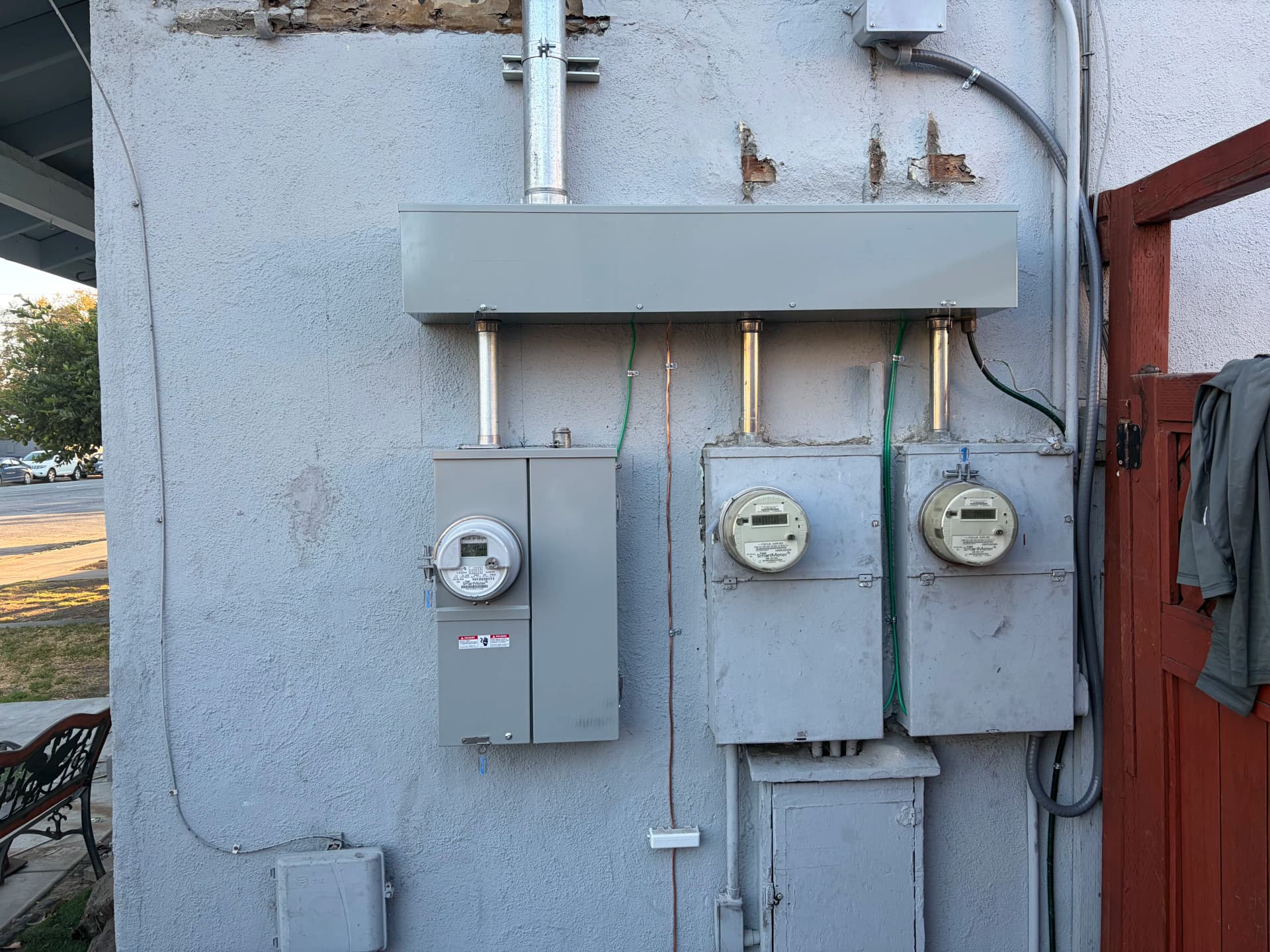

  • Installed the hot gutter with taps to 3 meter-main combinations

  • Sized the service and tap conductors per the NEC, with [conductor size/type] [in conduit/underground]

  • Coordinated with PG&E on design approval, sealing and meter set

    Each unit now has its own meter and main breaker on one 320A service, with room for Future Loads

Planning something similar? Adding an ADU or a separate meter usually comes down to what PG&E will approve at your existing service. Drummond Electric handles the load calculation, the PG&E application and the permit. Call (408) 661-0219.

Drummond Electric LLC · CSLB C-10 #1096595
